EasyFlipper – Flipping Machine and Turning Device for Heavy Sheet Metal Parts
The EasyFlipper is a compact flipping machine and industrial flipping device designed to turn heavy sheet metal parts safely and efficiently within seconds — without using cranes. Conventional turning with slings or clamps is time-consuming, physically demanding, and increases the risk of injury. In addition, sensitive surfaces can easily be damaged. With the EasyFlipper, even multi-ton workpieces can be positioned effortlessly at any required angle. This makes it the ideal industrial part flipper for a safer, faster, and more productive manufacturing environment.
New: 5 Tons EasyFlipper

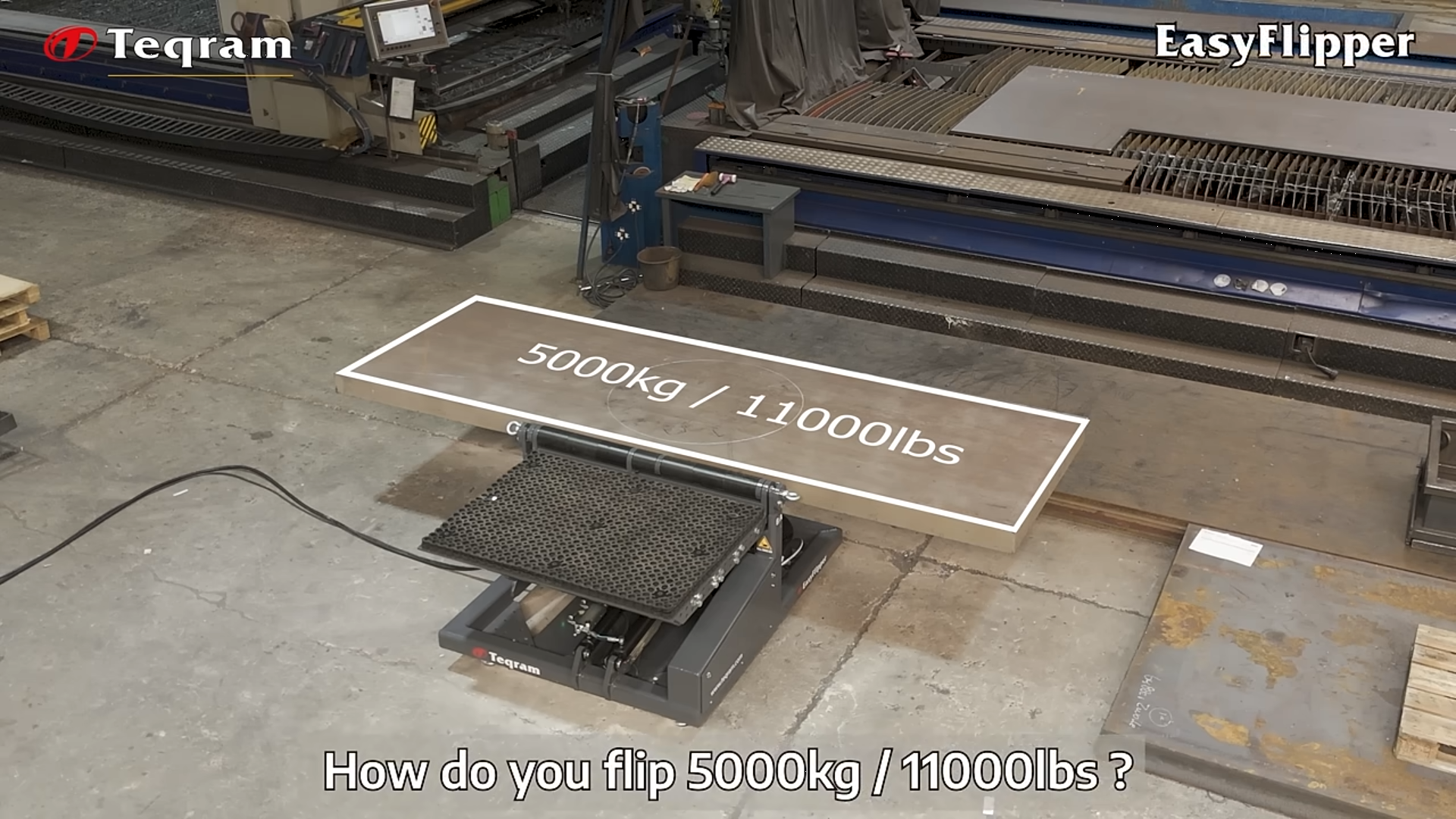

Introducing the Hydraulic EasyFlipper 5 Tons — the powerful solution for turning heavy steel plates with ease and most importantly, safety. This machine is designed to handle the toughest jobs, turning steel plates up to 5000 kg / 11000 lbs smoothly and efficiently.
The EasyFlipper plate turner is often used as a workstation for deslagging and sanding as well as a plate flipper for steel plates or sheet metal blanks. Its use as a universal turning device is particularly popular for applications where speed and safety are important.
Request EasyFlipper
Typical Applications of our plate rotator:
- Safe and fast turning of heavy sheet metal components
- Turning of flame-cut parts, turning of plasma parts
- Turning heavy components in front of a machining center for processing the opposite side
- Turning laser-cut sheets next to a folding machine
- For visual inspection of the top and bottom sides in QA
- Turning of sheet metal packages - e.g. tear plates
- Turning heavy blanks to fulfill packing instructions

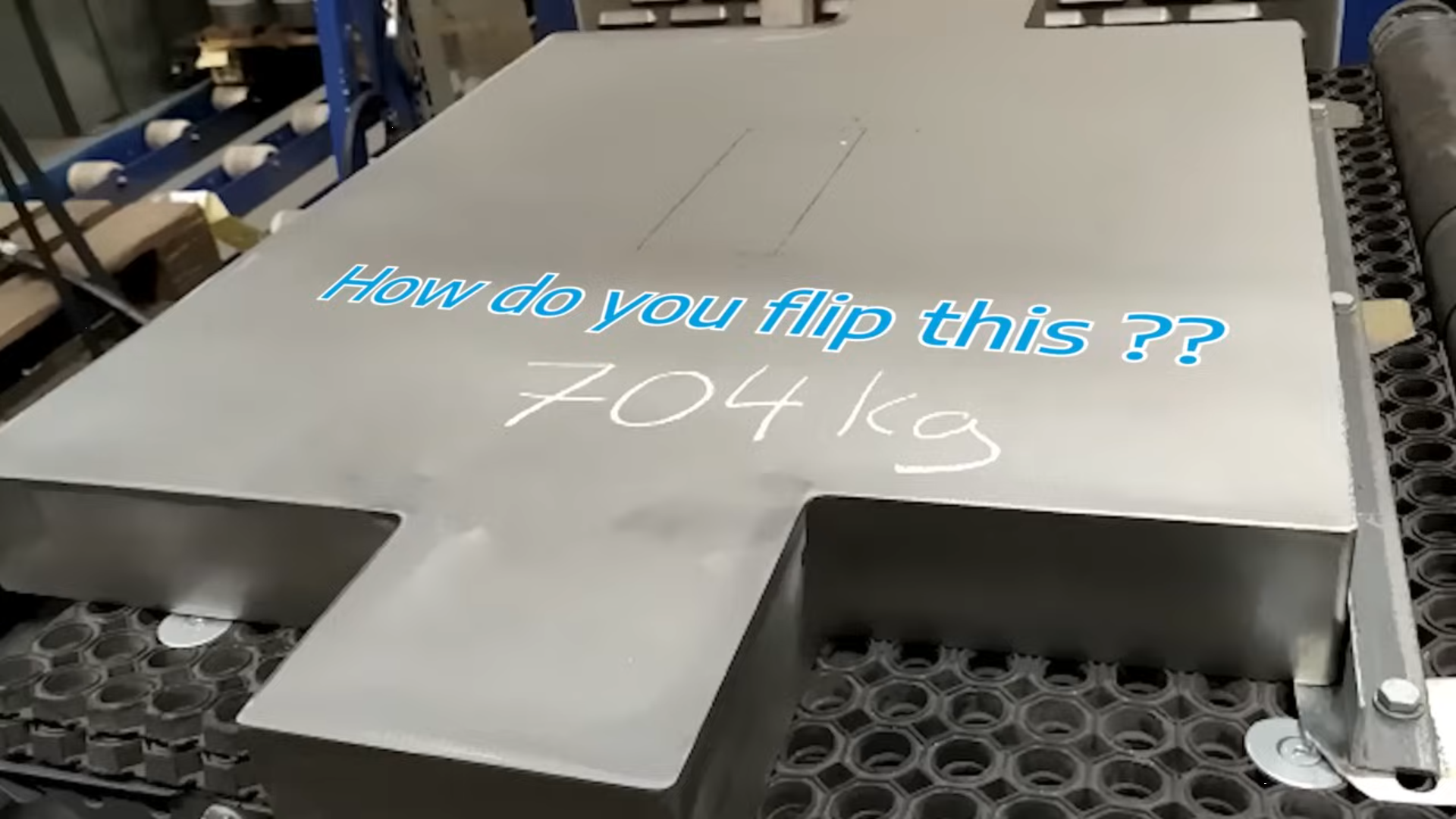

Gallery - EasyFlipper (Application examples - click through):
Specifications
The main specifications of the standard EasyFlipper sheet metal rotator are:
- Table size: 1200 x 800mm
- Maximum part weight:
- Pneumatic EasyFlipper: 750kg / 1650lbs
- Hydraulic EasyFlipper: 5000kg / 11000lbs
- Connected EasyFlippers: a multiple of the individual EasyFlippers
- Cycle time:
- Pneumatic EasyFlipper: 5 to 10 seconds
- Hydraulic EasyFlipper: 35 to 45 seconds
- Flipper table can be fitted with rubber mats or brushes to prevent scratches
- Easy manual control and/or integration with our vision guided robots
- 230V / 110V + 6 bar air pressure

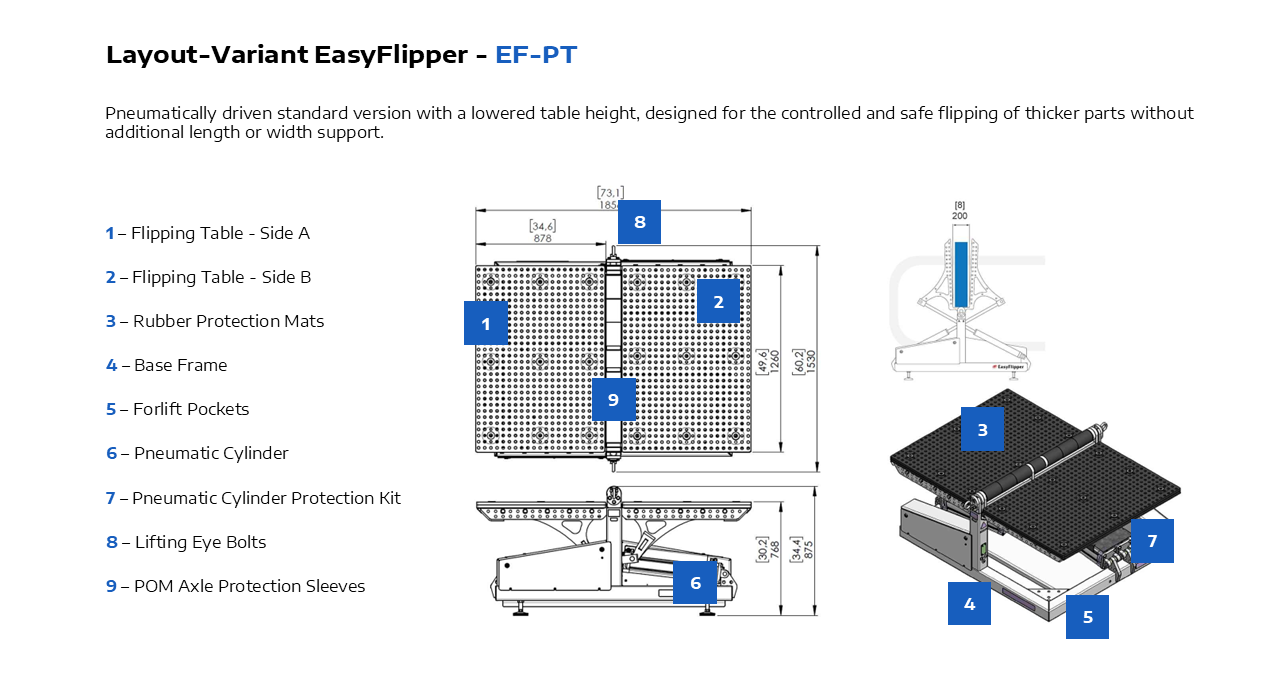

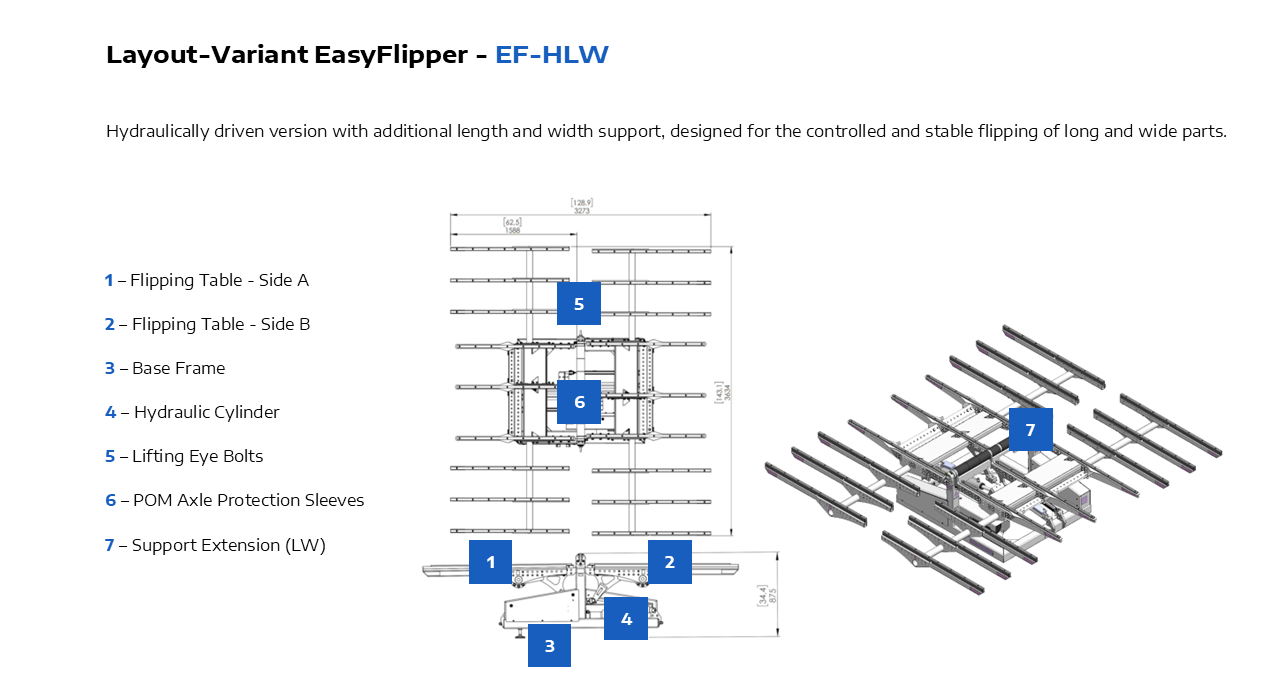

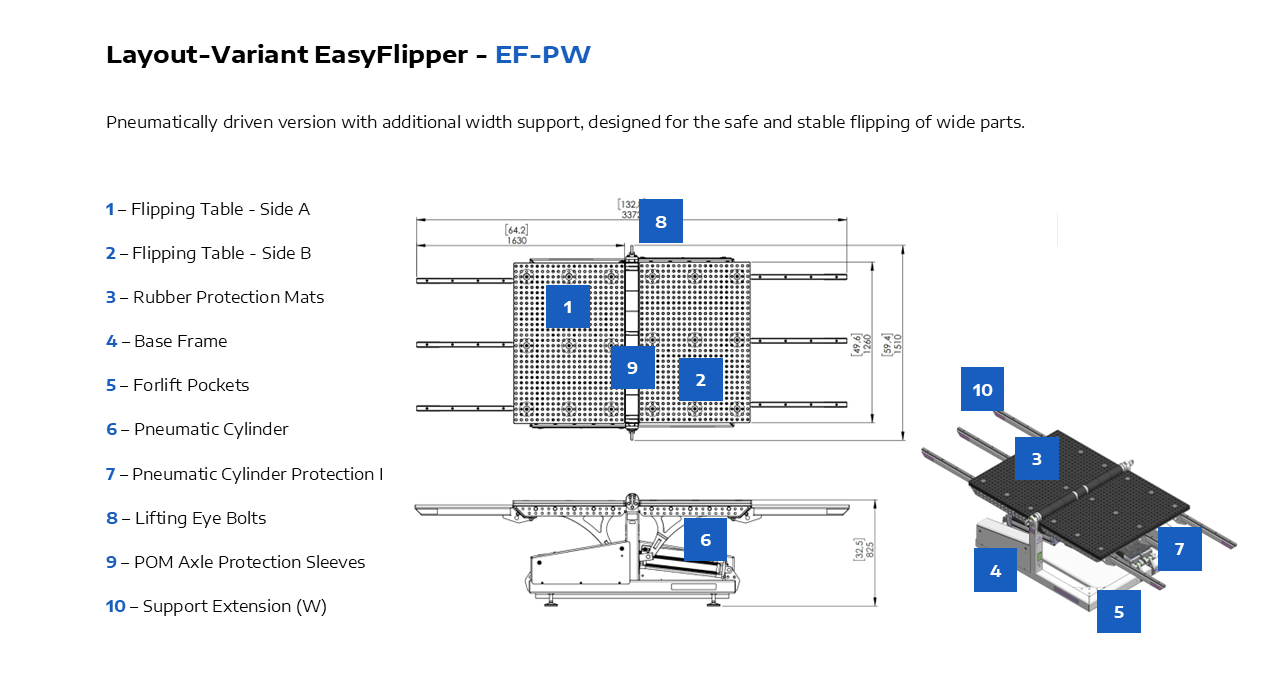

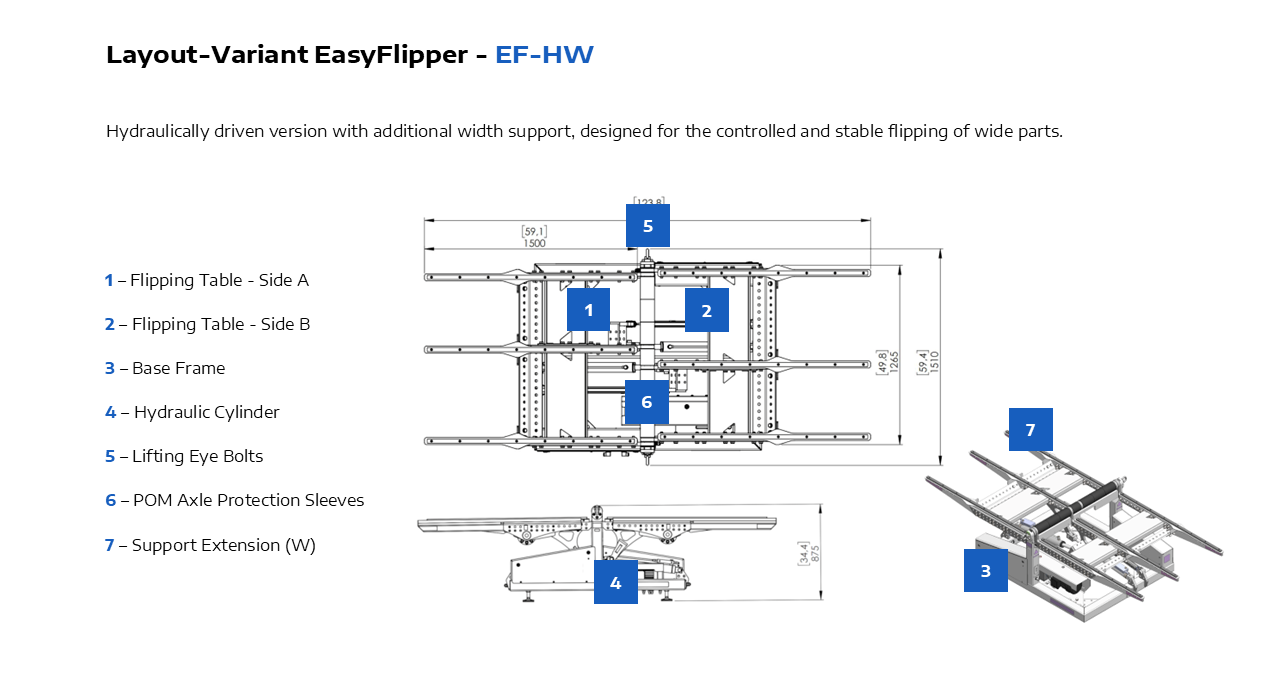

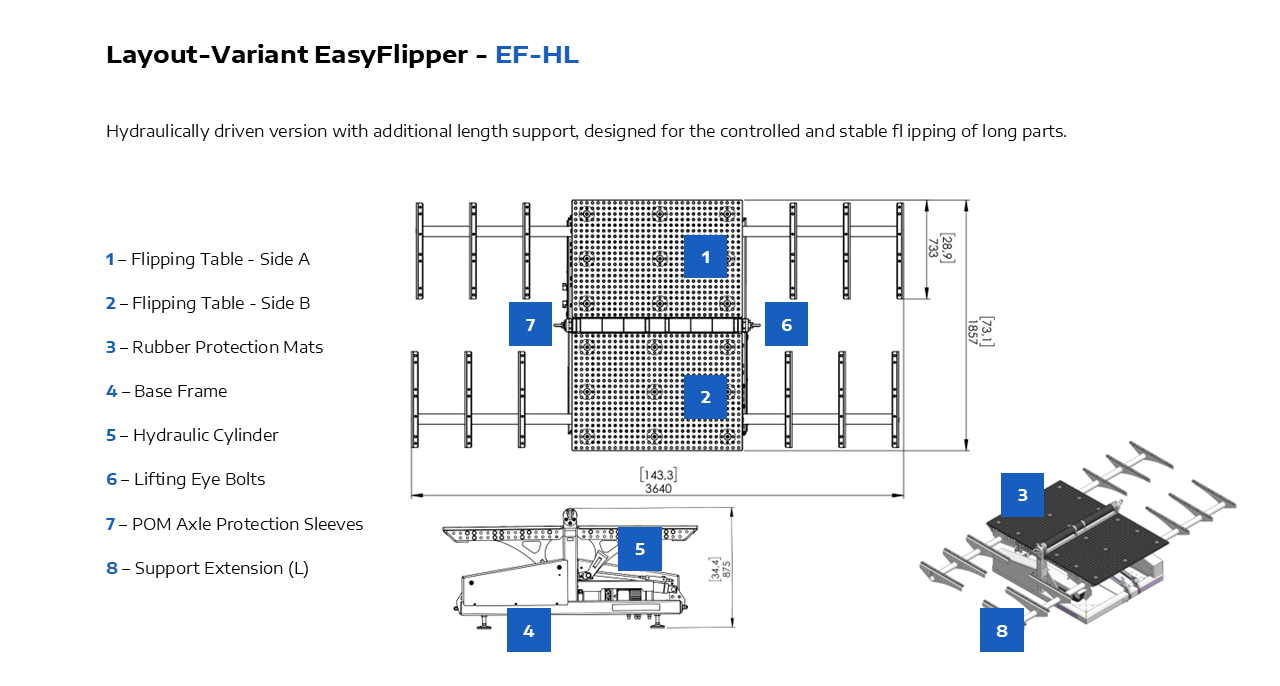

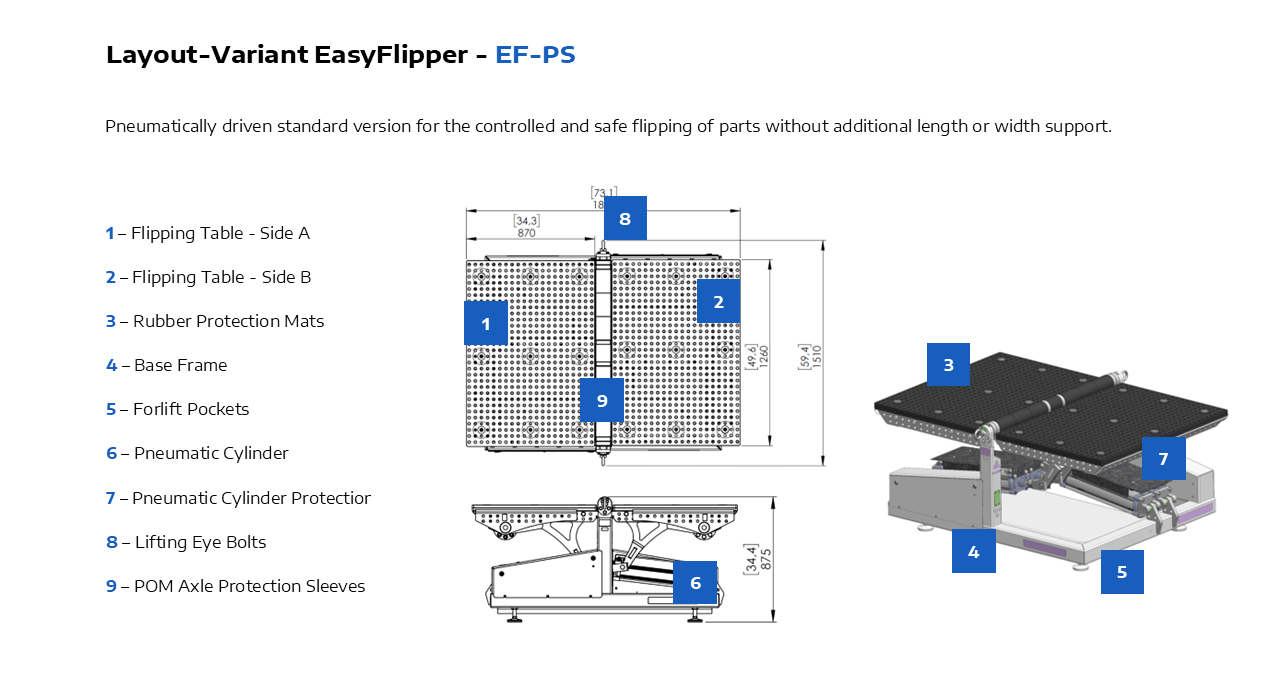

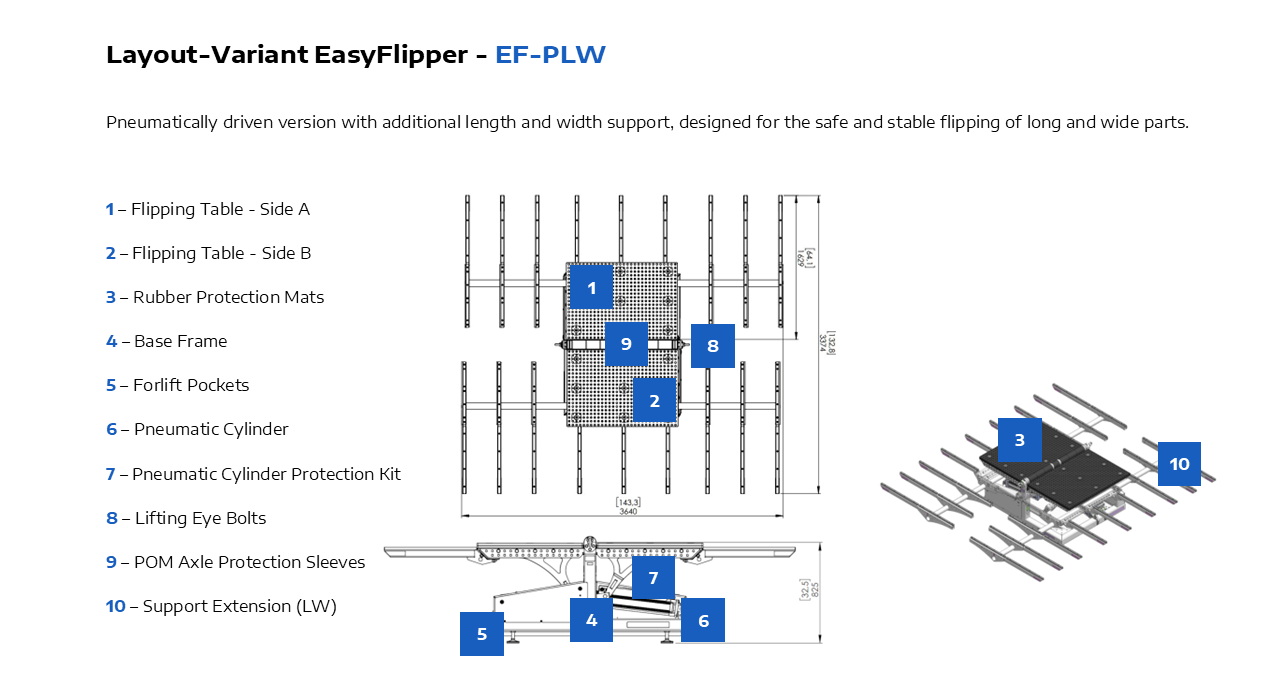

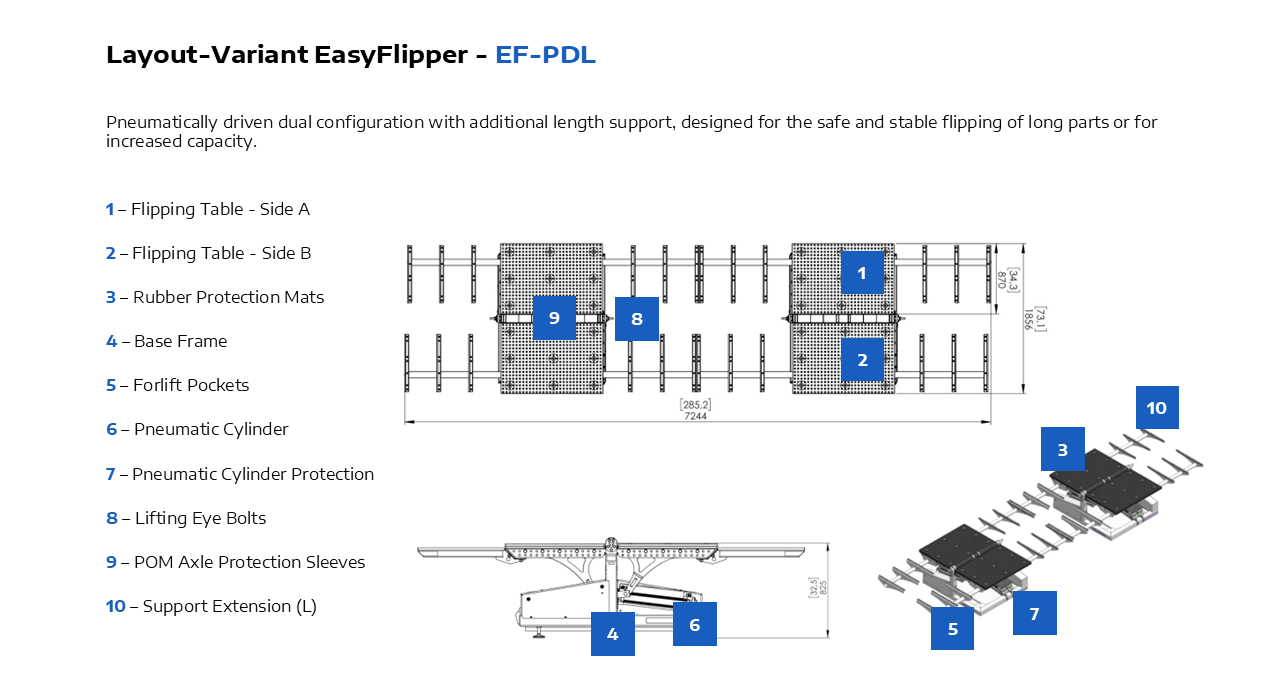

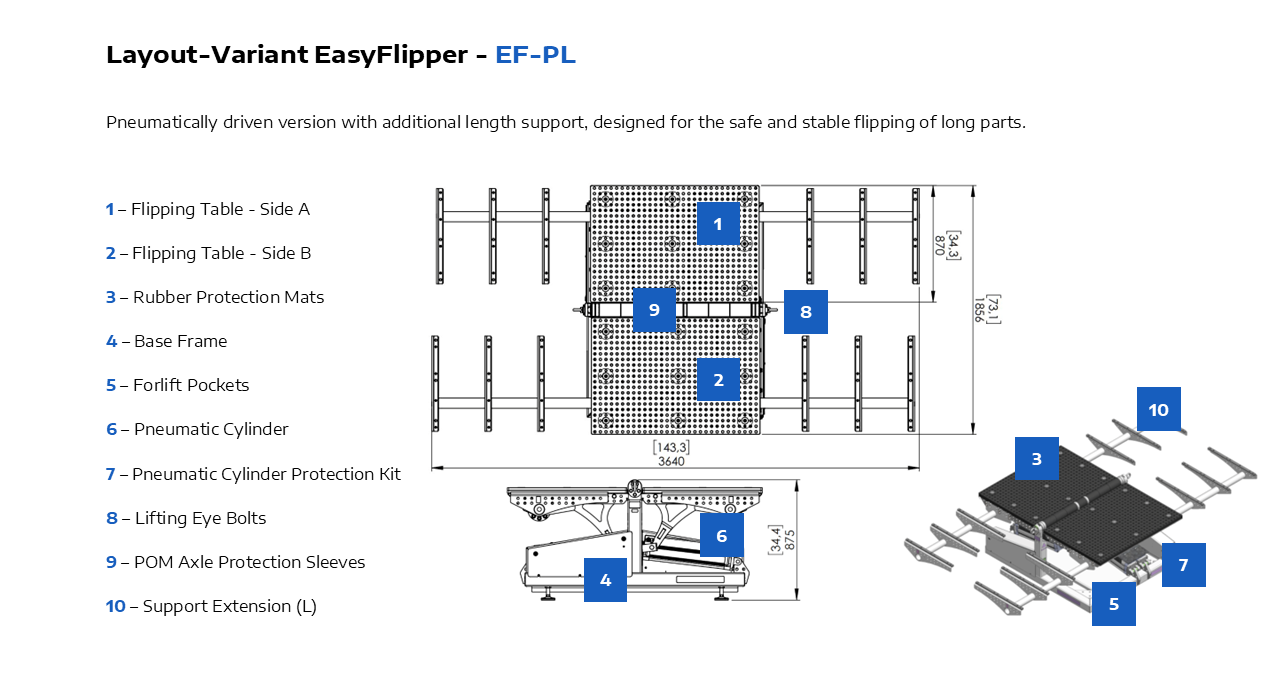

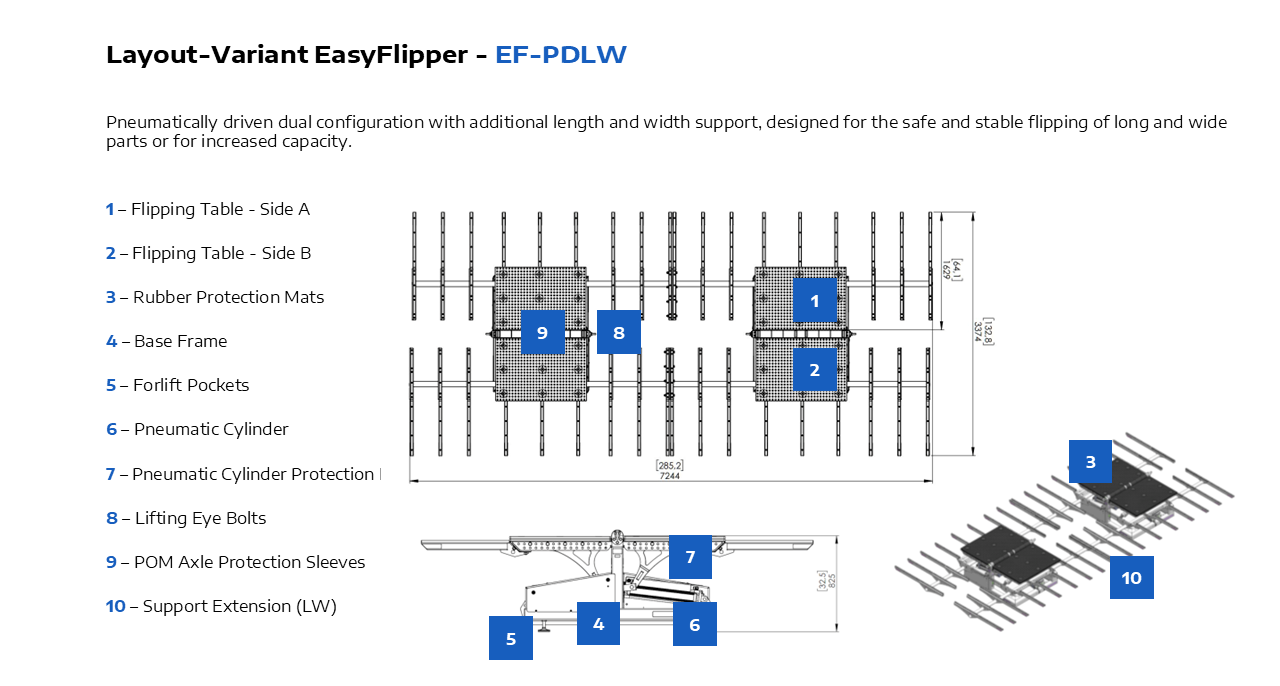

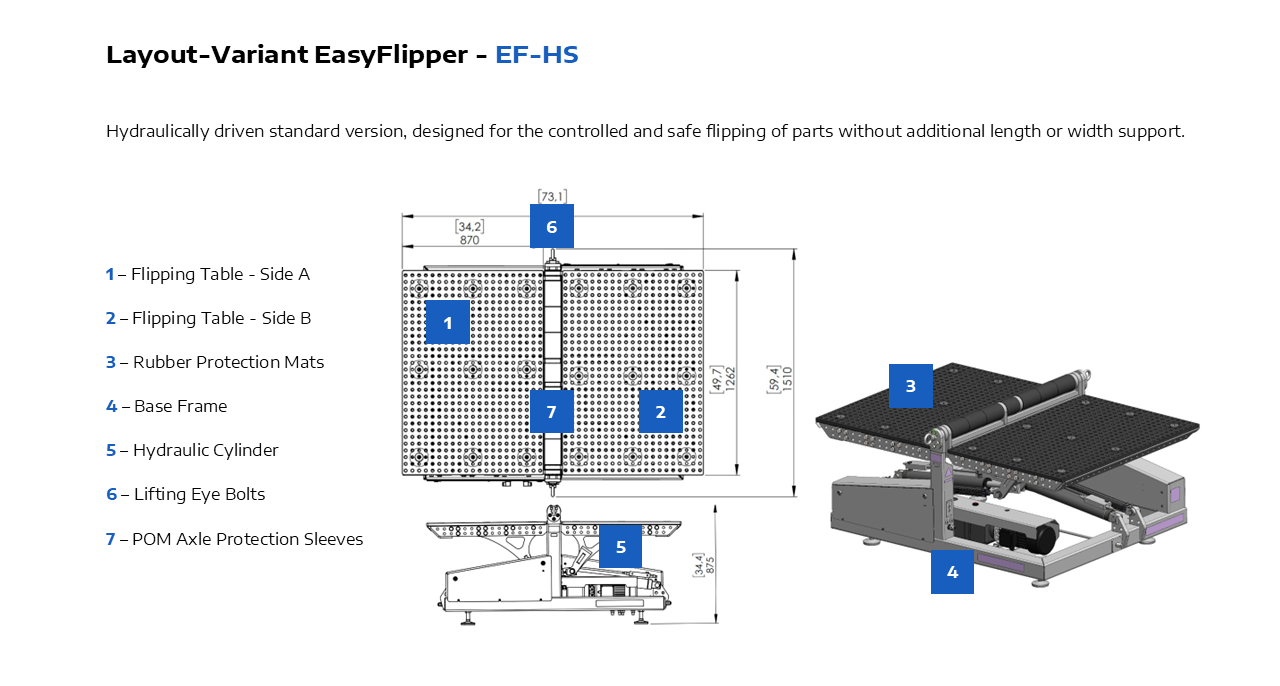

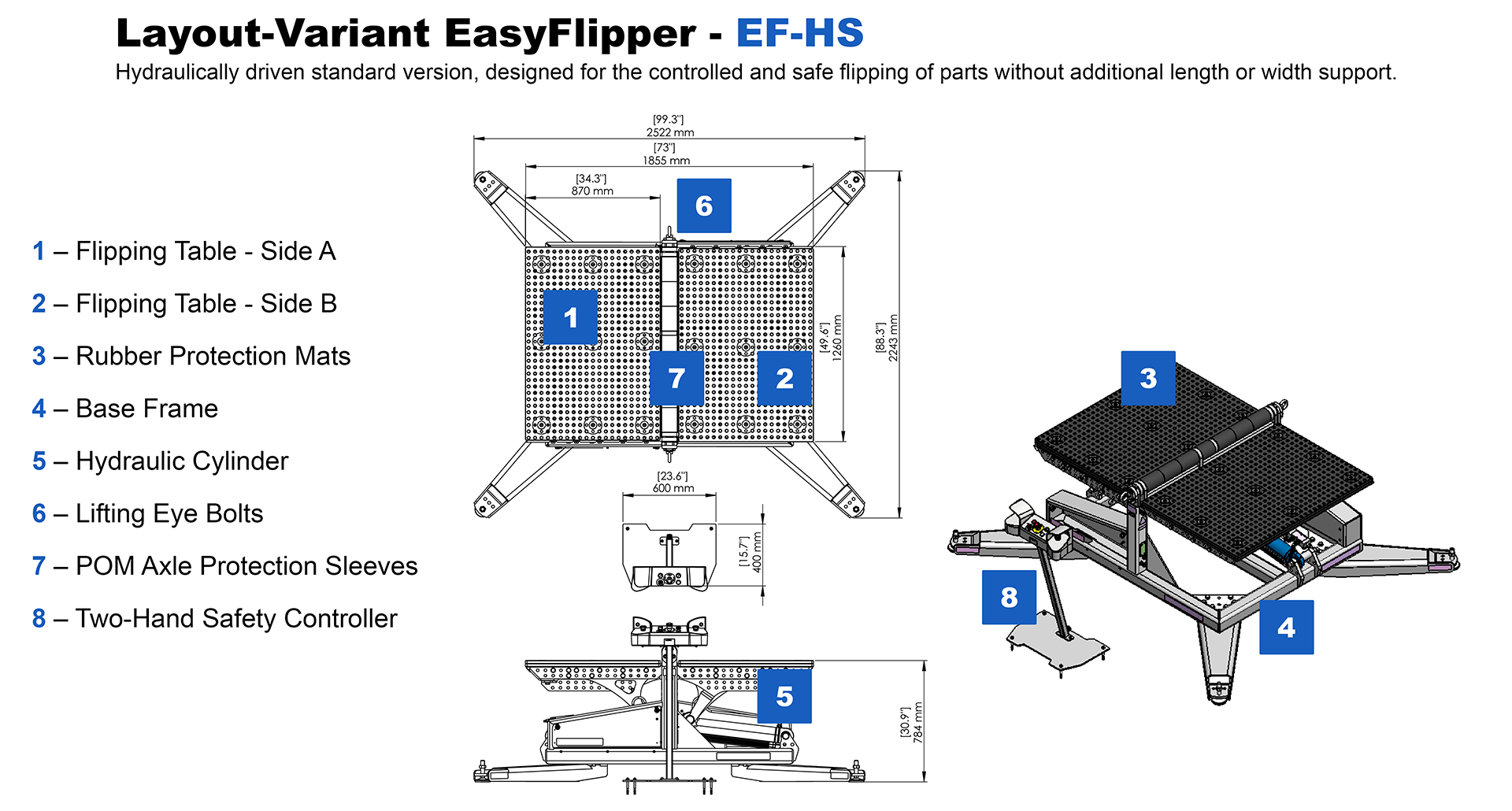

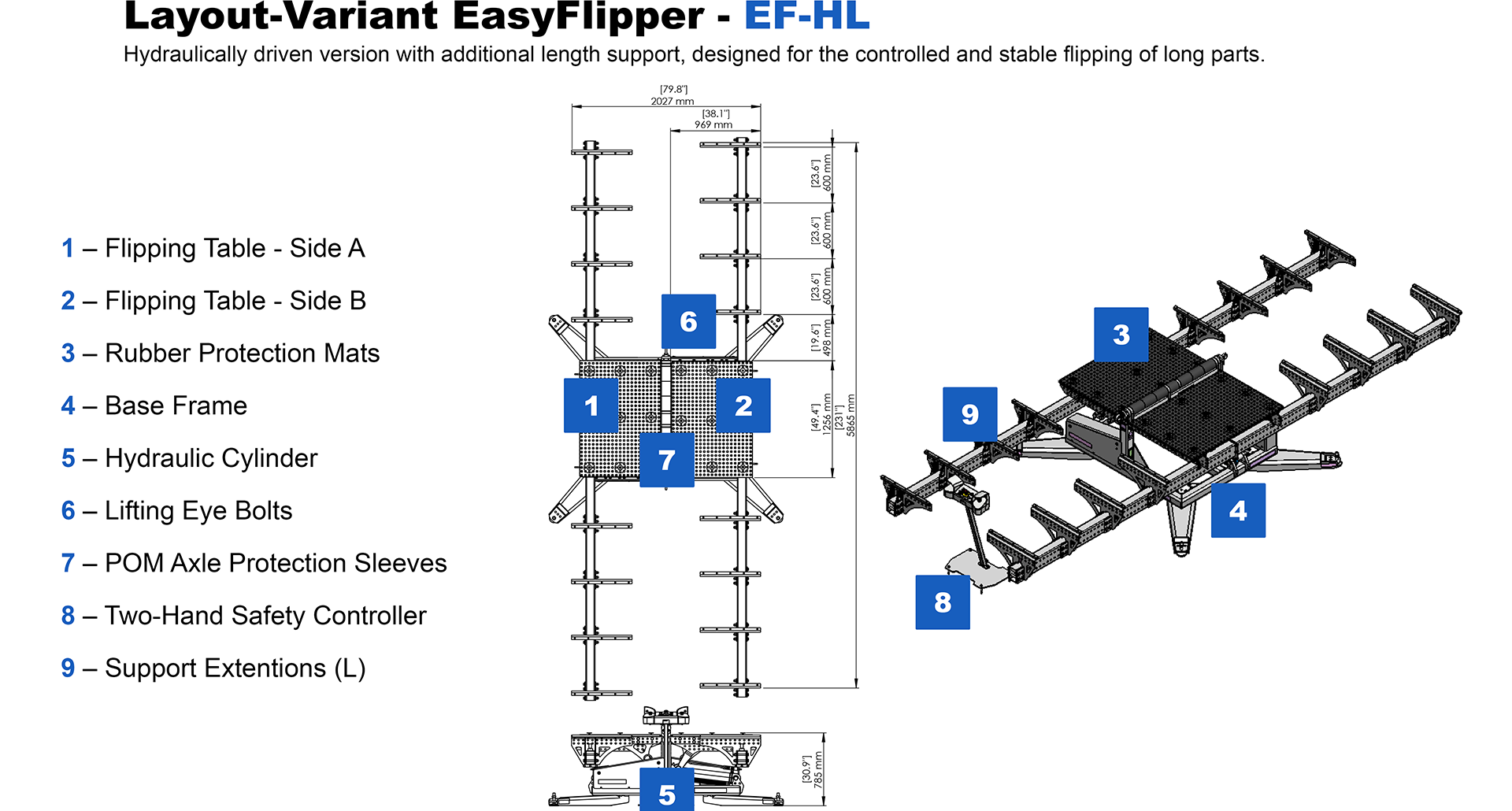

Some possible combinations with dimensions - EasyFlipper in mm [inch] (click through):
Unique Features:
If the application fits - the EasyFlipper is an absolute No-Brainer!
Speed
Turn sheet-metal parts in seconds. The fastest solution for safely turning heavy oxyfuel, plasma or laser-cut components!
Safety
"Manual" turning of sheet-metal parts (crane, hand, forklift, etc.) is very dangerous. Put safety first with the EasyFlipper sheet metal flipper!
ROI
Reduce time-consuming manual labor by automating the turning process! The competitive price of the EasyFlipper ensures an attractive ROI.
Connect 2 or more EasyFlipper for particularly long and heavy components!
Streamline your sheet metal operations with the Teqram EasyFlipper.
Boost your sheet metal workflow efficiency with the Teqram EasyFlipper.
More Than Flipping – Automation Solutions for Your Process
The EasyFlipper is your reliable product flipper for heavy industrial parts. In addition, we offer automation solutions that perfectly complement the EasyFlipper, including robotic cells for grinding, deburring, loading, and visual inspection.
With EasyGrinder, you achieve consistently precise grinding results—powerful, uniform, and reliable. Ideal for series production and demanding parts, EasyGrinder ensures perfect surface finishing and consistent material removal, all without manual effort.
EasyDebur automates your through-feed deburring machine and reduces the workload for your employees. Ideal for series production and demanding workpieces—including automatic flipping of parts, provided that one-sided deburring machines are used.
Teqram’s robotic solutions bring automation to a new level—flexible, reliable, and individually adaptable. Whether handling, assembly, or specialized processing, here you can explore our entire range of robotic solutions.

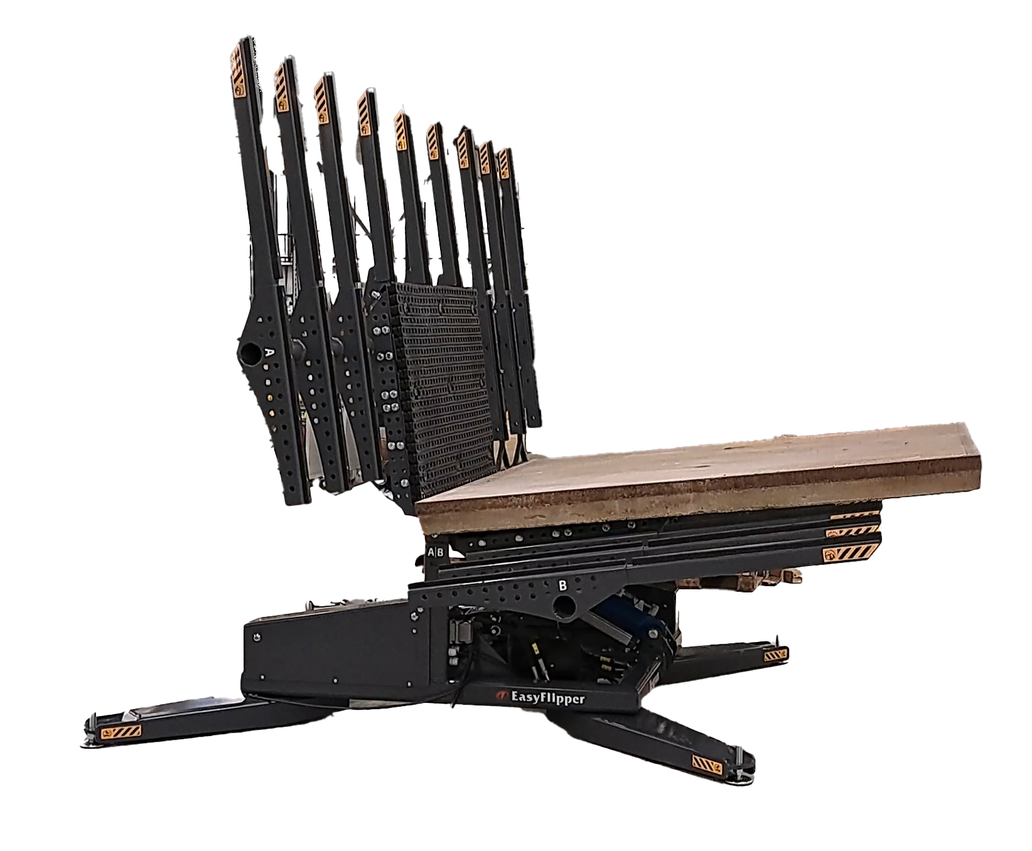

EasyFlipper: The flexible concrete slab flipper for heavy loads
The EasyFlipper is the ideal solution for the safe and efficient turning of concrete slabs. Thanks to its adjustable length and width, the machine can be adapted seamlessly to various slab dimensions. This makes the EasyFlipper an indispensable tool for anyone looking to handle heavy loads with maximum precision and speed.
Automated Flipping with the EasyFlipper – Request Information Now
Are you looking for a safe, time-saving, and cost-efficient solution to flip heavy industrial components? The EasyFlipper is a smart flipping device that integrates seamlessly into modern manufacturing environments.
From initial consultation to commissioning, we support you with technical expertise and real-world experience. Our goal is to simplify workflows, protect your workforce, and significantly improve production efficiency.
